Load Cell Types: How to Choose the Right Load Cell for Your Application

Load cells are the foundation of accurate force and weight measurement in industrial environments. These sensors convert mechanical force into electrical signals that your systems can read and respond to. Whether you're weighing materials for a batch, monitoring loads on lifting equipment, or controlling forces in a production line, the load cell you choose plays a direct role in the quality and reliability of your measurements.

When measurements are off, problems tend to grow quickly. Batches fall out of spec, equipment experiences unnecessary strain, and process control becomes harder to maintain. The good news is that with many load cell types available, you can usually find a sensor tailored to your situation.

In this post, we will walk through how to understand your requirements, explore the most common types of load cells and where they work best, and share practical guidance for choosing the right sensor. By the end, you'll have a clear, straightforward framework for matching a load cell to your setup.

How to Choose the Right Load Cell

Before looking at individual load cell designs, it helps to take a step back and clarify what your load cell application needs. The right choice generally comes from matching a few basic factors.

Load direction

Decide whether your system applies force in compression, tension, or both. Platform scales usually measure compression only. Suspended systems like crane scales measure tension. Testing machines or systems that reverse direction may require a cell that handles both.

Capacity requirements

Choose a load cell with enough capacity to handle your maximum expected load including weight of vessel if applicable, with some room for safety. At the same time, avoid selecting a capacity so large that your typical operating range sits in the least sensitive part of the cell. In most cases, working within the middle portion of the rated capacity gives the best accuracy.

Environment

Consider where the load cell will be installed. Temperature swings, moisture, cleaning chemicals, dust, and vibration all influence performance. If the cell will be exposed to wash-down conditions, outdoor environments, or corrosive processes, look for proper sealing, IP ratings, and suitable materials such as stainless steel.

Mounting constraints

Some installations have plenty of space for a taller compression cell; others need low-profile or compact sensors. Existing fixtures, bolt patterns, or limited space narrow the choices quickly. If you're retrofitting an older machine, a cell that matches the existing footprint may simplify the project.

Output type

Load cells communicate with your system in different ways. Traditional analog cells output millivolts per volt and require an indicator or amplifier. Digital load cells include built-in electronics that simplify wiring and offer added diagnostics. Wireless load cells remove cabling altogether for hard-to-reach setups. Some applications also integrate directly with industrial communication protocols.

Speed and accuracy requirements

A slow, steady batching process has different needs than high-speed checkweighing or force monitoring in a press. Accuracy class, response time, and stability over temperature all matter here.

Once you outline these factors, choosing the right load cell becomes much more straightforward.

Common Load Cell Types & Uses

The industry offers many load cell designs, each shaped for a specific purpose. Here are the types you’ll encounter most often and where they tend to fit best.

What is a Load Cell?

Load cells are the most widely used sensors for industrial and laboratory measurements. They use bonded strain gauges on a metal element that bends slightly under load. As the metal flexes, the gauges change resistance, creating a measurable electrical signal.

These cells offer a reliable balance of accuracy, durability, and cost. They are available in a wide range of capacities and can be configured for compression, tension, or both. With proper sealing, they work well in environments ranging from clean rooms to outdoor installations.

You’ll see strain gauge cells in hopper scales, tank weighing, test machines, and many general force-measurement setups.

Miniature Load Cells

Miniature load cells offer strong performance in very small sizes. They measure lower forces - usually from a few pounds to a few hundred - and fit into places where larger cells cannot.

These sensors are common in medical devices, robotics, handheld tools, and specialized fixtures. Button-style or washer-style miniature cells integrate easily into compact assemblies.

Because of their size, miniature cells are more sensitive to installation alignment. Ensuring a clean, straight load path helps maintain accuracy.

Beam Load Cells

Beam load cells use a bending beam structure to measure applied force. They are popular in small platform scales, bench scales, and OEM systems where accurate low- to medium-capacity measurement is required.

Single-point beam cells are especially useful because they are designed to provide accurate readings even when the load is not perfectly centered on the platform. This matters in retail scales, packaging lines, and applications where operators place items in different positions.

Beam cells work best in controlled indoor settings. While sealed versions exist, heavy-duty outdoor use is usually better suited to other designs.

Platform & Single-Point Load Cells

These load cells are designed specifically for small and medium-sized weighing platforms. These cells are cantilever beams and allow them to maintain accuracy even with off-center loading.

They are widely used in bench scales, food processing equipment, pharmaceutical manufacturing, and packaging operations where reliable portion or batch measurement is important.

Capacities range from a few pounds to a few hundred. For larger platforms, multiple single-point cells or other designs may be more appropriate.

S-Type / Tension-Compression Load Cells

S-type load cells have a characteristic S-shaped body and work well in both tension and compression. Threaded or eye-style connections at each end make them easy to install into pulling or pushing systems.

You'll often find S-type cells in suspended weighing systems, crane scales, and tank or hopper installations. They handle dynamic loads well, making them suitable for applications with movement or vibration.

Correct alignment helps ensure accurate results and prevents side-loading issues.

Canister (Compression) Load Cells

Canister load cells, sometimes called compression load cells, are built for high-capacity applications. They are cylindrical and designed to handle thousands to millions of pounds with excellent long-term stability.

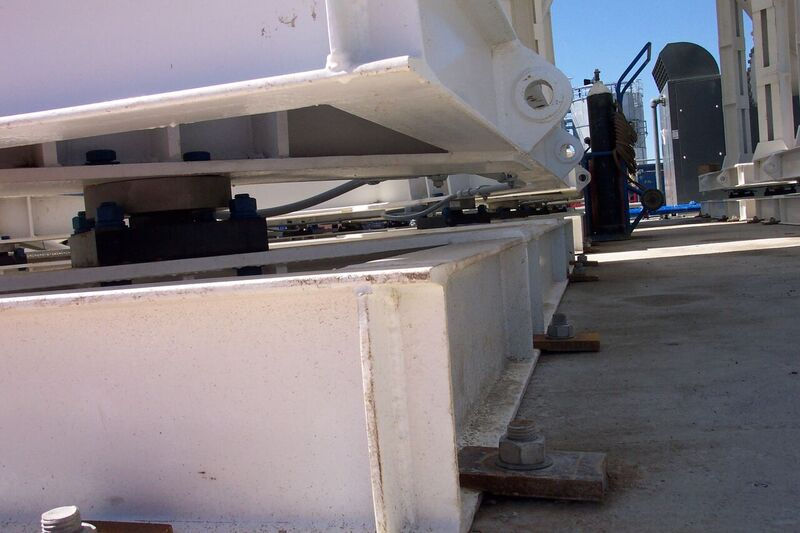

You’ll typically see canister cells under large platforms, truck scales, rail scales, silos, and tanks. Multiple canister cells often support a single structure, with their signals combined for total weight.

These cells are built to withstand demanding outdoor conditions and heavy industrial use, making them the go-to choice for truck scales, rail scales, and other high-capacity weighing applications across industries.

Other Specialty Load Cells

Several specialized load cell types serve unique applications:

• Shear beam and double-ended shear beam cells offer strong performance for platform scales and batching systems. Their geometry helps reduce sensitivity to off-center loads.

• Pancake or disk load cells provide high capacity in a low-profile form. These are common in press monitoring, testing setups, and installations where height is limited.

• Load pins and tension links integrate directly into mechanical components and measure force without requiring major changes to the structure.

• Wireless load cells remove the need for cables, making them useful for remote sites, rotating machinery, or other places where wiring is difficult.

These specialty designs help fill gaps where standard load cells are not the best fit.

Final Tips for Load Cell Selection

Choosing a load cell becomes easier once you have a clear understanding of your system's needs. Here are a few final points to guide you:

• Match the cell’s capacity and load direction to your application. Consider both typical and maximum loads.

• Look for proper environmental protection if your setup involves moisture, dust, or chemicals.

• Check certification requirements early if you need legal-for-trade or regulated accuracy.

• Select the right output type for your control or monitoring system.




Understanding how force is applied in your system and balancing performance with environmental and mechanical constraints will help you make a confident, practical choice.
